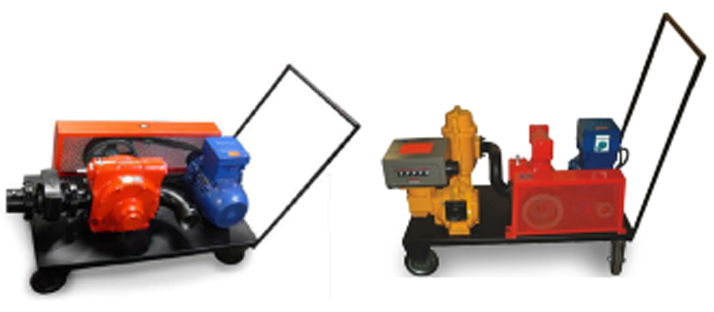

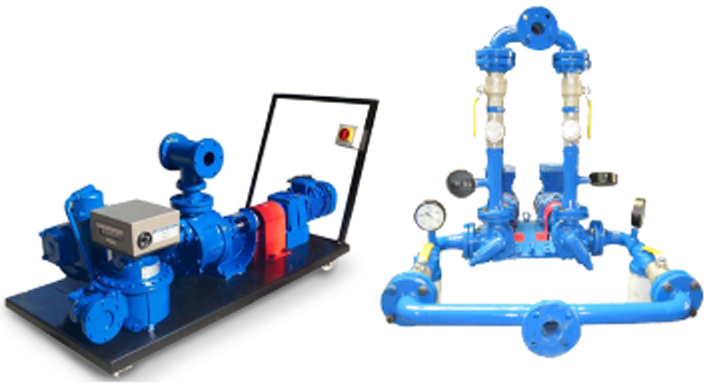

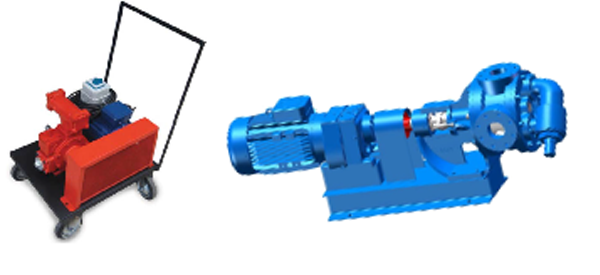

OPECO fuel transfer systems offers a wide range of fuel transfer pumps that provide rugged, raliable fuel transfer that dispenses fluids quickly safely and accurately.
Developed to operate in the most severe construction working environments, you can be assured that these pumps dont quit so staff spend less time fueling their heavy indutrial equipment and more time getting the job done.
USAGE OF THE PRODUCTS
*CONSTRUCTION AREA
*AGRUCULTURE
*TRANSPORTATION
*CHEMICAL
*ENERGY AND POWER FACILITIES
*TANK FARMS
*ALL OTHER IN-HOUSE FACILITIES

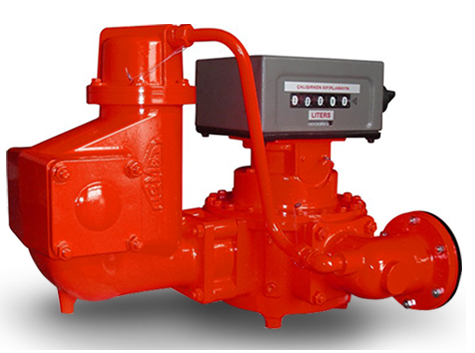

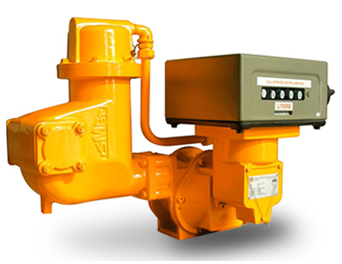

Positive displacement, with Electronic or Mechanic counter register.
While determining the right meter, the instantaneous flow rate must be taken into consideration. The rates are given below for all fuels applications.
Between 10 - 100 LPM flow rate - ER 90 series
Between 40 - 400 LPM flow rate - ER 88 series
Between 70 - 700 LPM flow rate - ER 72 series
Between 450 - 1580 LPM flow rate - ER 73 series
Superior Accuracy: The IPT rotary vane meter principle minimizes pressure drop accords the measuring chamber which reduced low trough meter clearances to maximize accuracy.
Low Pressure Drop: Streamlined flow path provides low pressure drop.
Positive and Accurate Registration: High torque drive calibrator with adjustment in %0.05 increments ensures accurate registration.
For metering relined petroleum products; such as Regular and Unleaded Gasoline, Diesel, Bio-Diesel, Aviation Gasoline, Jet Fuel, Naphtha, Kerosene. etc.

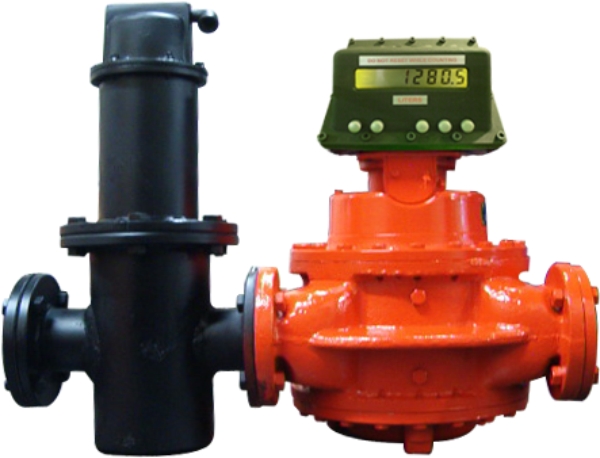

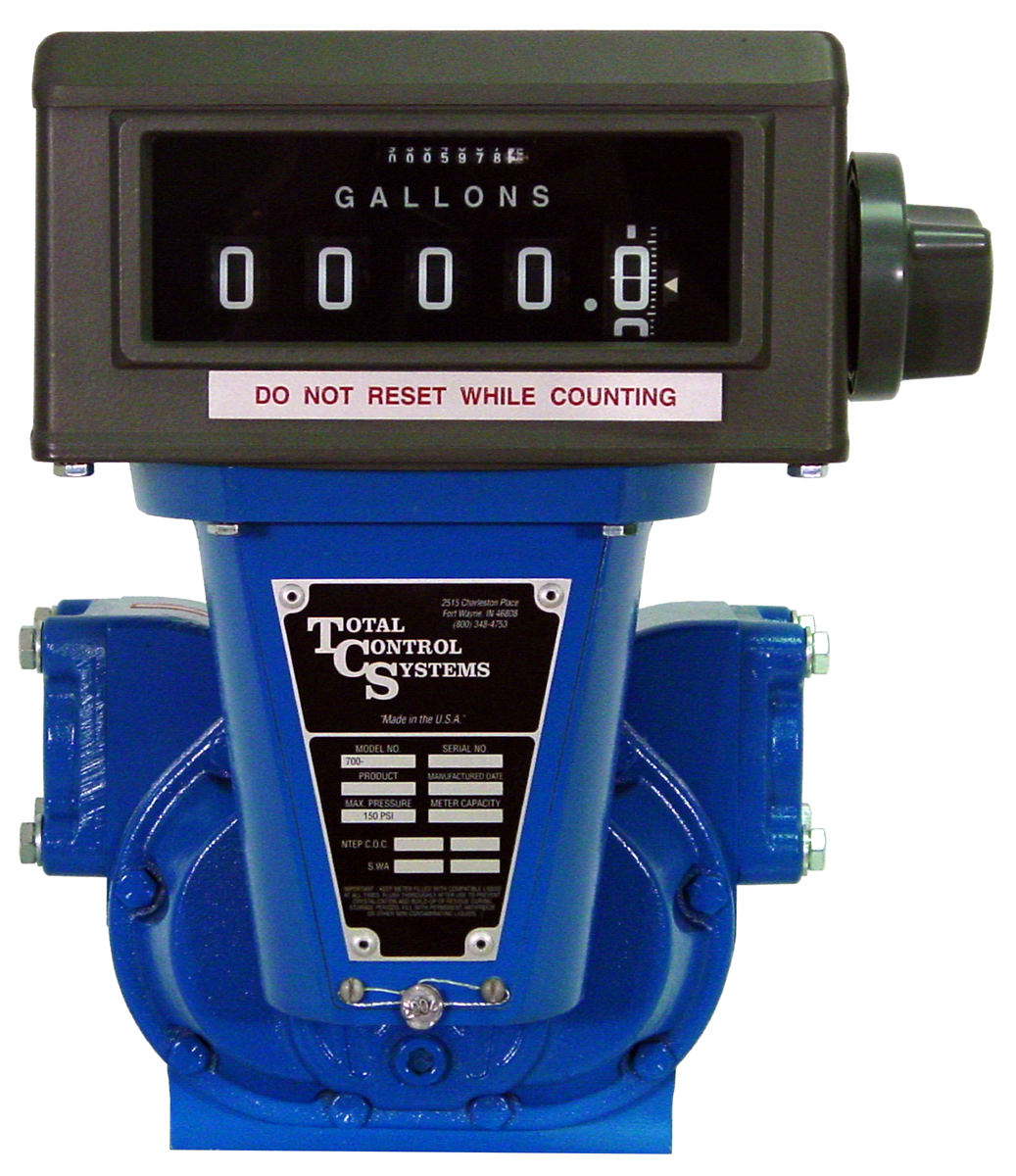

Total Control Systems is a leading manufacturer of positive displacement flowmeters and measurment solutions within the petroleum, alcohol and solvent custody transfer industry for many years. 682 piston and 700 serie rotary flowmeters provide precision accuracy and innovative solutions for the custody transfer of renewable (alternative) fuel applications, including the production, processing, terminal operations and transportation.
Total Control Systems offers advanced materials within our flowmeters for complete compatibility with biodiesel and ethanol/methanol blended fuels. TCS flowmeters are available in ductile iron or anodized aluminum materials of construction.
700 – 15 SERIE 1 ½" UP TO 227 LPM
700 – 20 SERIE 2" UP TO 380 LPM
700 – 25 SERIE 2" UP TO 567 LPM
700 – 30 SERIE 3" UP TO 760 LPM
700 – 35 SERIE 3" UP TO 1.135 LPM
700 – 40 SERIE 4" UP TO 1.893 LPM
700 – 45 SERIE 4" UP TO 2.271 LPM
700 – 60 SERIE 6" UP TO 3.040 LPM
700 – 65 SERIE 6" UP TO 3.800 LPM
