Fuel Station Infrastructure Equipment

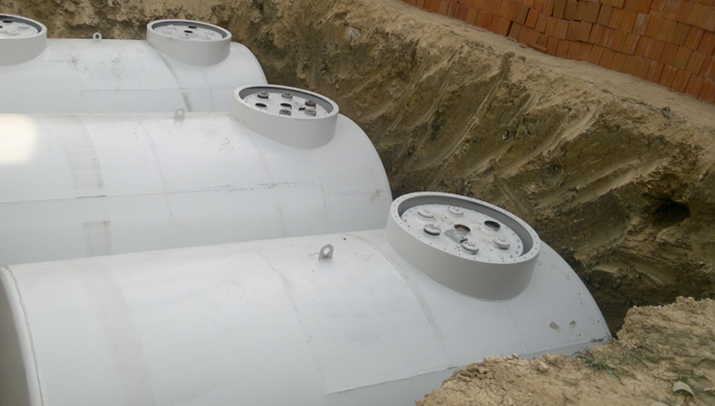

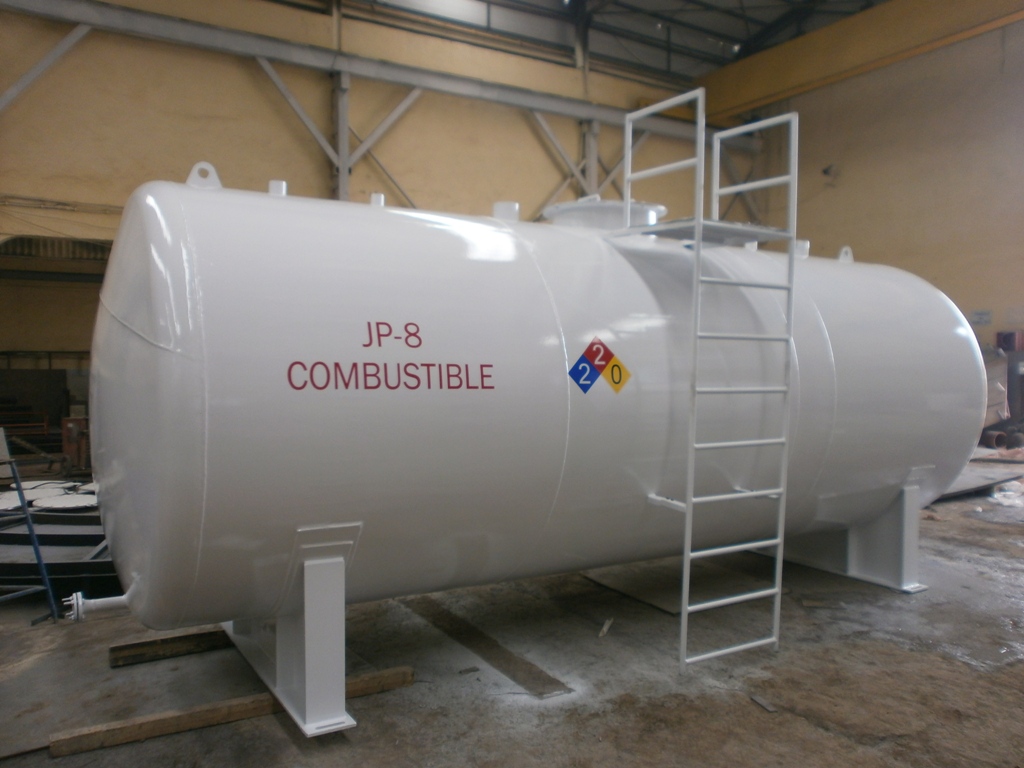

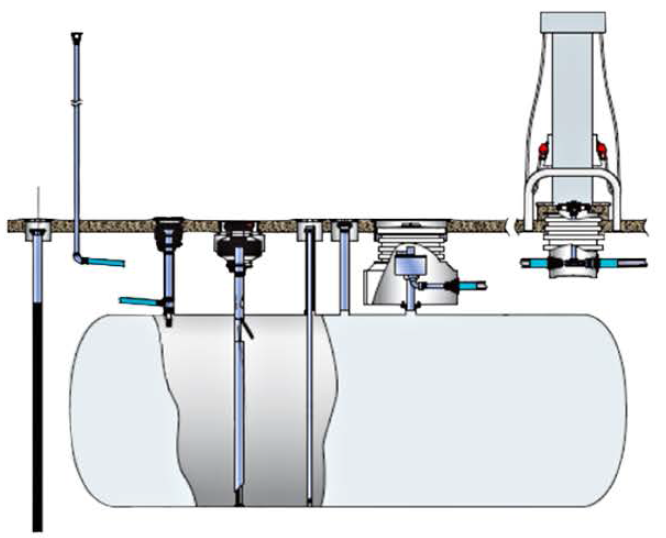

UNDERGROUND AND ABOVEGROUND FUEL STORAGE TANKS

OPECO single or double walled storage tanks fulfill all of the requirements of safe single compartment containment for underground storage or petroleum products, hazardous and non-hazardous liquids. Our all manufactured tanks are light weight, strong and provide a long and trouble-free solution.

OPECO single or double walled storage tanks standards meet to exceed the performance standards required by;

EN-12285-1
EN-12285-2
UL58
UL142

*Standard sizes ranging from 500 to 100.000 litres
*Larger capacities available on request
*Single or double wall manufacturing
*Sandblasting: SSPC6 prior to coating
*Coating: heavy duty industrial Jotun-2-Part epoxy
*Compartments option
*Horizontal or vertical

UNDERGROUND PE PIPING

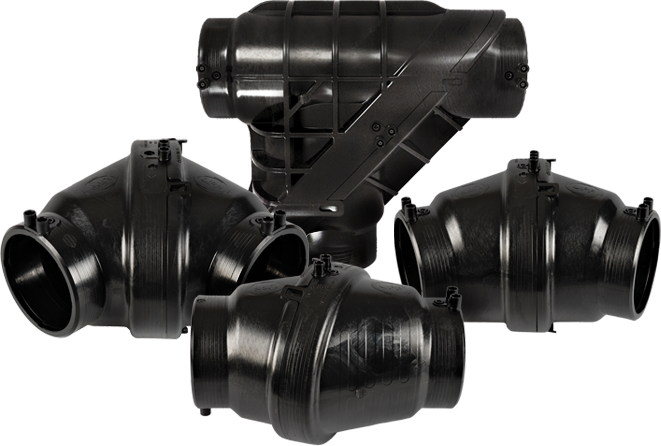

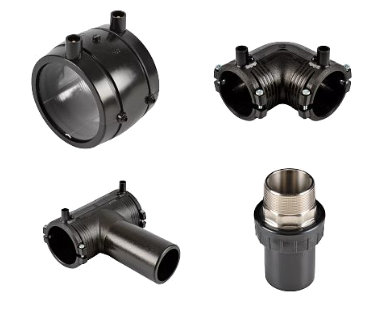

UPP® pipework utilizes the advanced electrofusion welding process to effectively bond system components including pipework and containment together into one, watertight system

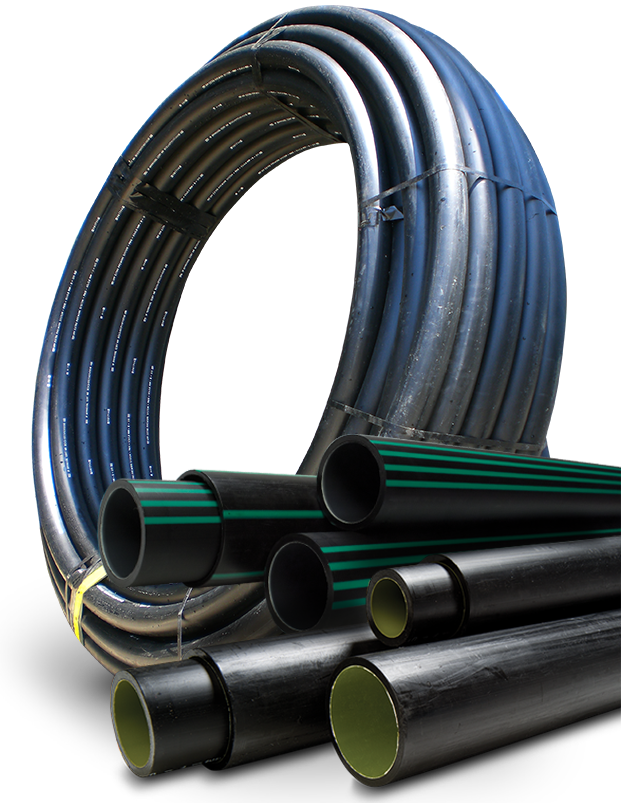

EN UPP® pipe is offered in 32mm, 50mm, 63mm, 90mm, 110mm, and 160mm diameters and a variety of stick and coil sizes.

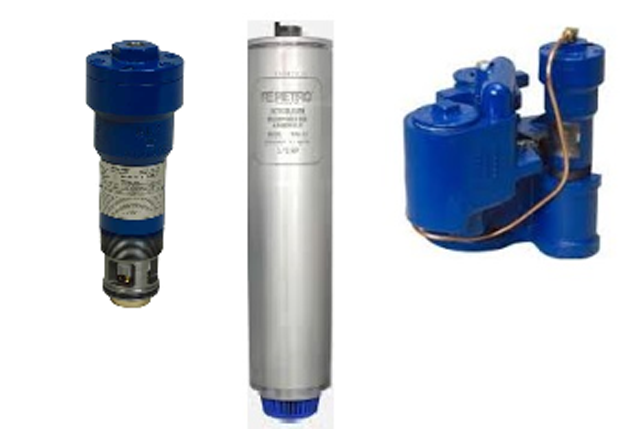

SUBMERSIBLE PUMPS

1½ - 2Hp Fixed Speed, Variable Length 50Hz

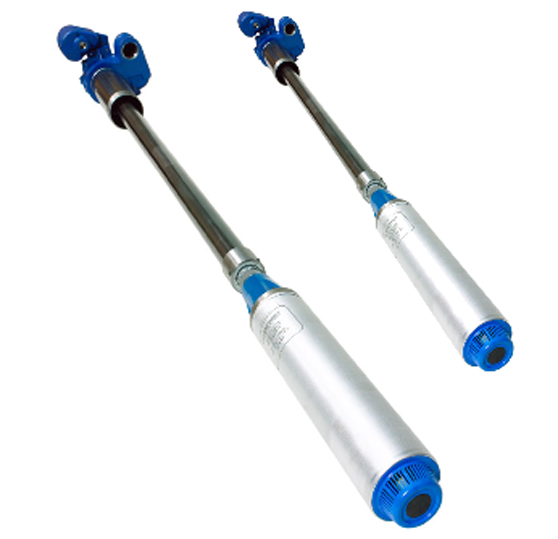

FePetro Submersible Turbine Pumps

Marketers concerned about fueling times, efficiency, serviceability, reliability and overall quality find it an easy choice to specify FE Petro™ brand submersible turbine pumps (STPs). An STP has to be reliable, it has to be safe, and it has to perform. That's why thousands of station owners around the world have trusted FE Petro™ STPs and the Franklin Electric motors that drive them to keep their business flowing for over 25 years. With best-in-class flow rates and backed by a long history of dependability FE Petro™ STPs simply do their job without fail, delivering fuel to customers day after day without a hitch.

Liquid Compatibility
  • Max. liquid viscosity: 70 SSU at 60°F (15°C).
  • Standard STP models are listed for fuel mixtures containing up to 10% ethanol with gasoline, and 20% MTBE, 20% ETBE or 17% TAME with gasoline.
  • STPAG (AG compatible) models are for fuel mixtures containing diesel fuel with up to 20% biodiesel, 100% biodiesel, up to 85% ethanol with gasoline and 20% MTBE, 20% ETBE or 17% TAME with gasoline.
  • Fixed speed models can also be used with diesel fuels, fuel oils, kerosene, Avgas and jet fuels in a non-gelled pourable state.
  • All wetted elastomers are made of a high grade, fluorocarbon compound.

UNDERGROUND TANK ACCESSORIES

OPECO is focused exclusively on providing components and systems specifically designed to help promote the highest level of environmental sustanability by protecting our environment from potentially hazadous overfills, spills and leaks in commercial and retail fuel handling processes.

All environmental products are engineered and manufactured utilizing rigorous continuous quality improvement processes and throughly tested in-house testing facility; the largest and most sophisticated testing facility in the industry.

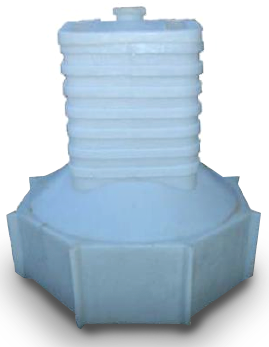

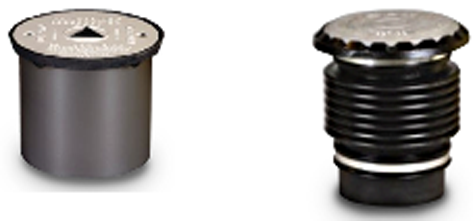

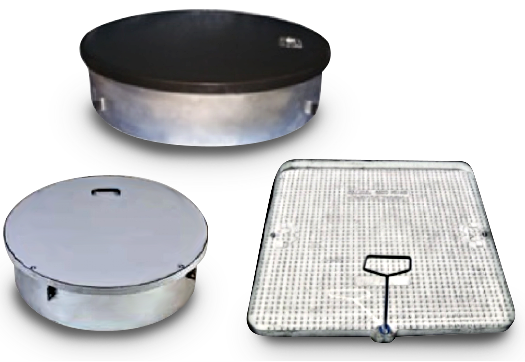

*MAN-HOLE COVERS
*SPILL CONTAINERS
*TANK CHAMBERS

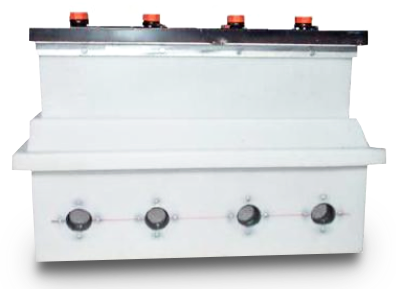

*DISPENSER SUMPS
*MONITORING WELL
*TRANSITION SUMPS

MECHANICAL PETROLEUM VALVES FOR TANK FARMS

MANUFACTURING ACCORDING TO API, ASME AND DIN STANDARDS



FIRE SAFE APPROVED

MANUFACTURING ABILITY UP TP 24inch

CLASS 150 – CLASS 600


The valves supplied by OPECO is confidently moving toward related to painned and integrated actions in order to achieve the goal of establishment and objectives in conformity with that goal.

Customer appreciation is the greatest power sourch of OPECO.

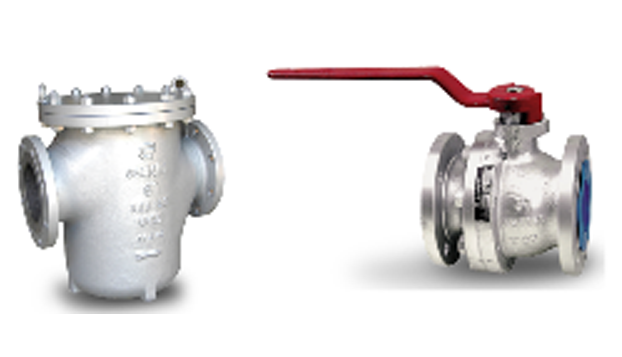

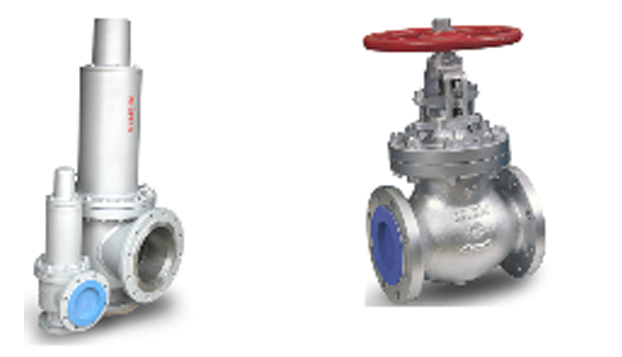

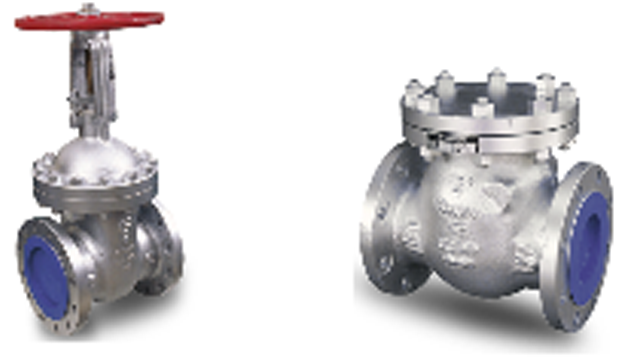

MAIN PRODUCT RANGE


*GATE VALVES
*CHECK VALVES
*GLOBE VALVES
*BALL VALVES
*SAFETY VALVES
*STRAINERS
